Multi Functional Trainer Pin Loaded Machine | MADE TO ORDER

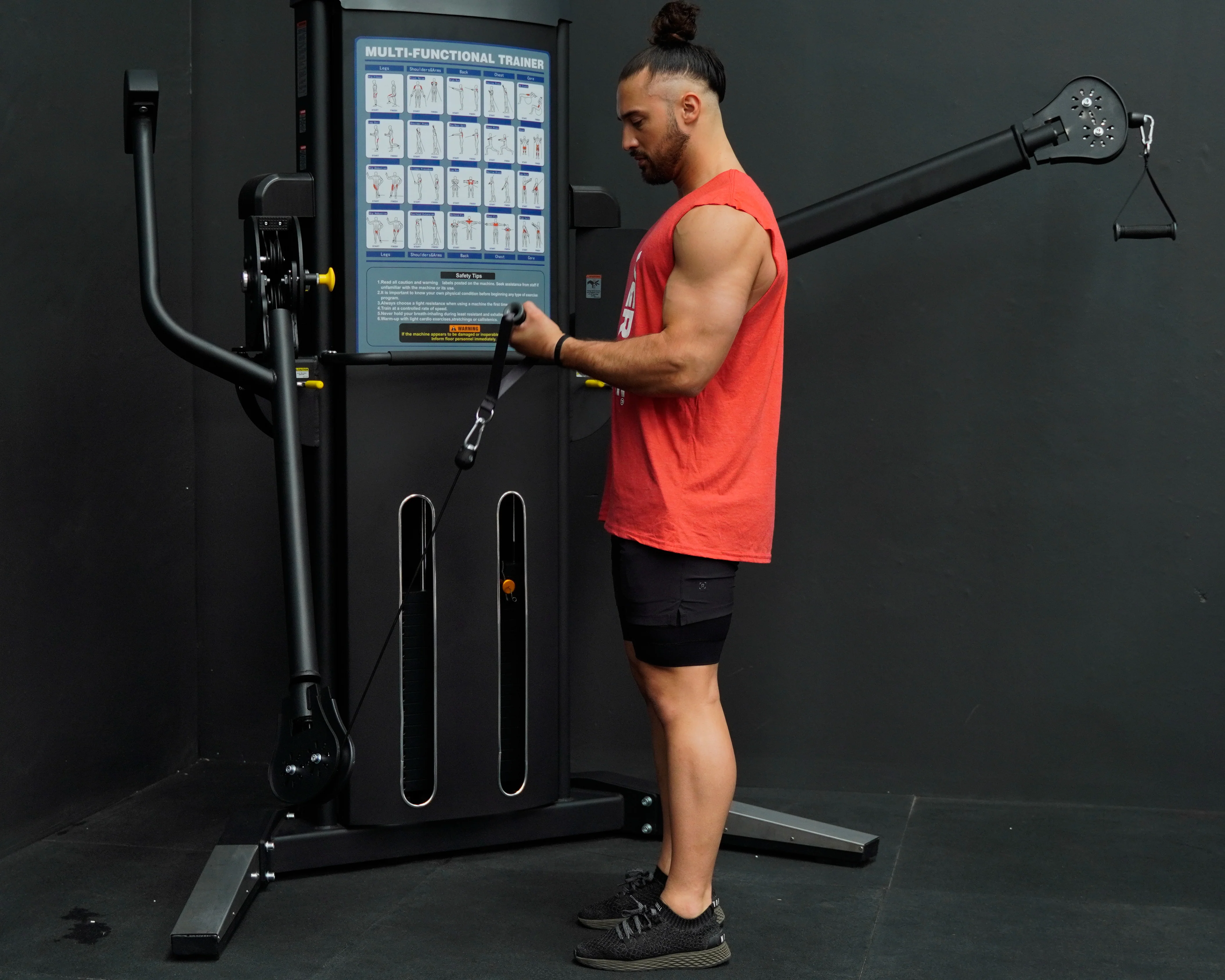

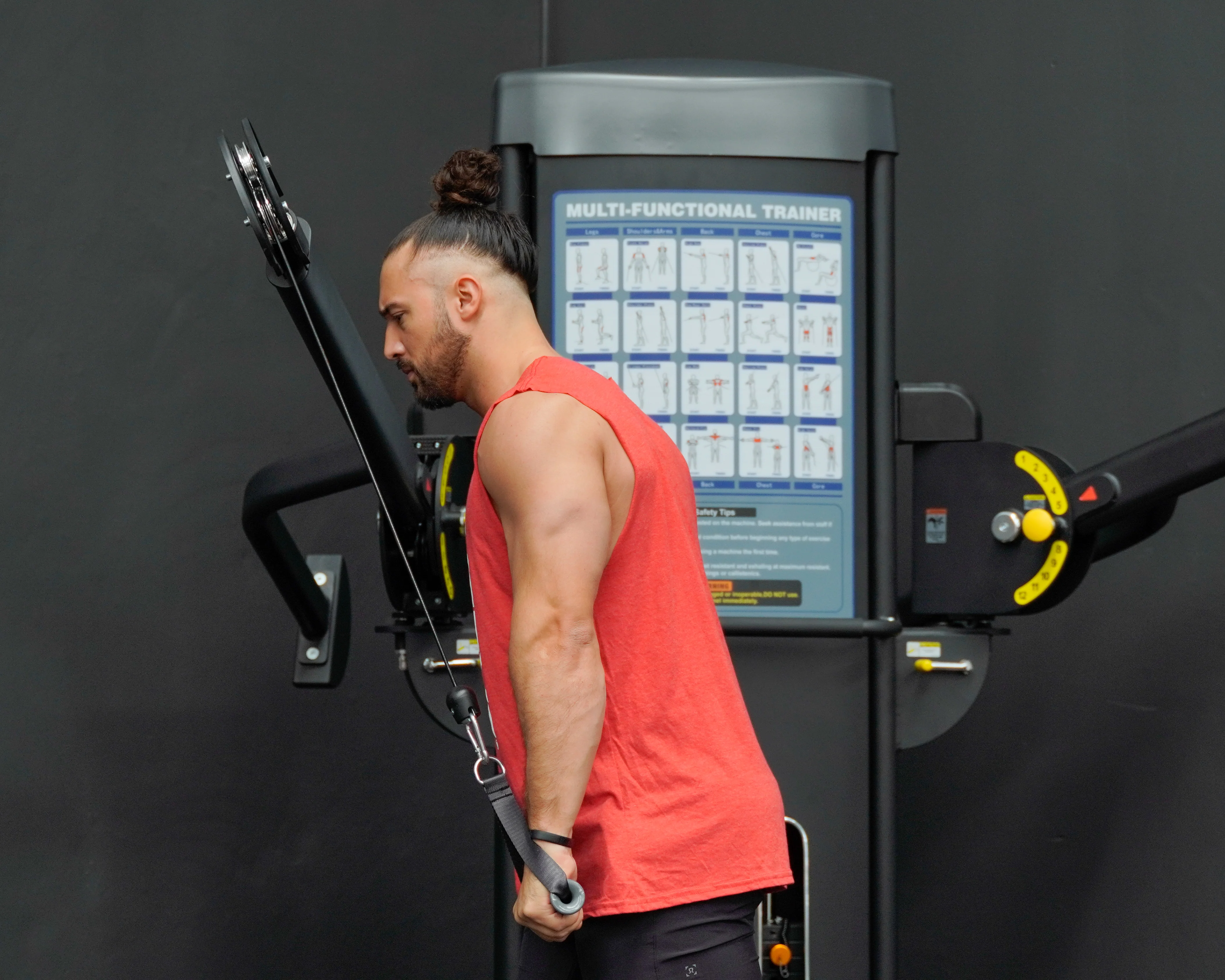

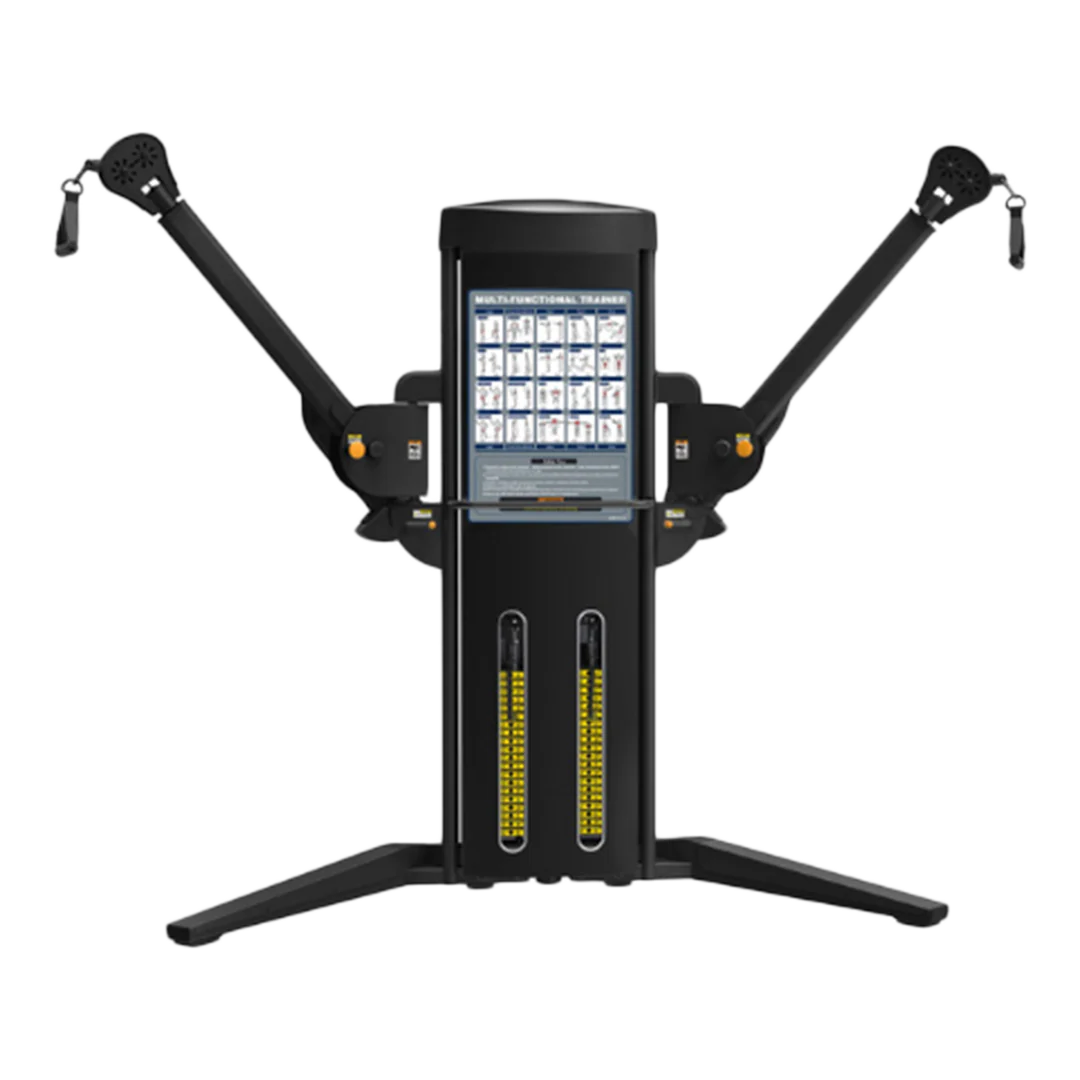

Multi Functional Trainer
TheĀ Multi Functional Trainer from the Arnold Series ofĀ strength machinesĀ is a heavy dutyĀ commercial machine that has been built to last. Perform endless cable exercises with the machine with its super easy and efficient adjustable arms and weight ranges.Ā
Features:
- 90kgĀ steel weight stack
- Custom finish colors available - special order
- Super heavy duty frame and mechanics
| Weight | 395kg |
|---|---|
| Dimensions |
Base 1100x1700mm Height Arms Down 2050mm Height Arms Up 2350mm Width Arms Out 3500mm |
| Commercial Warranty |
COMMERCIAL WARRANTY* 10 YEARS: Structural main frames, welds, cams and weight plates. 5 YEARS: Pivot bearings, pulleys, bushings and guide rods. 1 YEAR: Pull-pin components and rail wheels. 6 MONTHS: Upholstery, cables, finish and rubber grips. ALL OTHER PARTS not mentioned, one year from the date of purchase to the original purchaser. |
| Frame |
Heavy duty 100mm x 50mm x 3mm thickĀ oval steel frames with a combination of 50mmĀ round tubing. |
| Cables |
3/16" USA-Made/Certified EXERFLEX PRO high performance cable. 4-1/2ā and 3-1/2ā diameter fiberglass reinforced nylon pulleys with sealed bearings enclosed in protective steel covers. |
| Finish |
Powder coat finishĀ |
| Weight Stack |
90kg steel weight stacks. Steel weight stack enclosures with decorative built-in storage compartment cover |
| Other Specs |
Sealed 50mmĀ roller bearings and 25mm diameter solid steel axle encased in machined housing on all primary pivot points. 20mm precision ground, hard chrome finish, solid steel guide rods. Thermoplastic rubber handgrips secured with aluminium end caps for durability and improved feel. Protective rubber stabiliser feet with anchoring holes provided on all machines. |
